No
Items
Specifications
1
Tape Diameter
Φ16mm
2
Tape Wall Thickness
0.15—0.4mm
3
Single Screw Extruder A
SJ-90/36
4
Single Screw Extruder B
SJ-25/25
5
Design production Speed
300m/min (200/300mm spacing distance)
6
Central Line Height
1000mm
7
Dripper Identifying Speed
2000 pcs/min
8
Dripper Spacing
100mm—1000mm
9

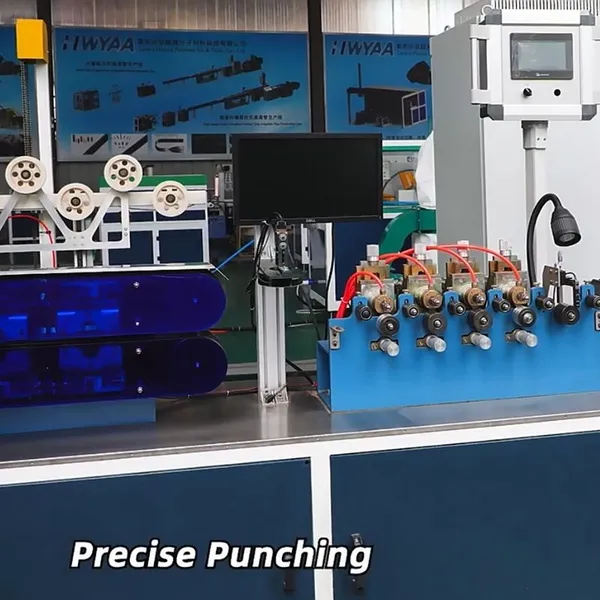

Punching Speed
2000 pcs/min
10
Punching Method
Mechanical punching
11

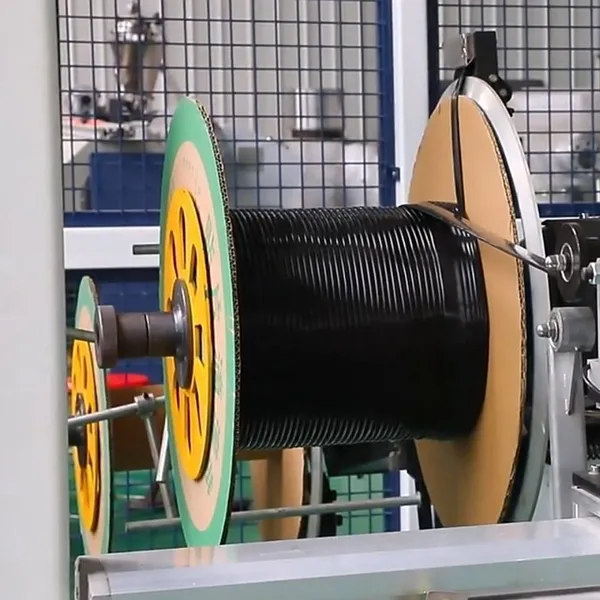

Tape Roll Length
500m—2500m
12
Total Installed Power
135Kw
13
Max Extruding Capacity
240Kg
14
Size of the Line （L×W×H）
25m*2m*3m
15
Total Line Weight
About 6000kg
